Air Bag System Input/Output Table

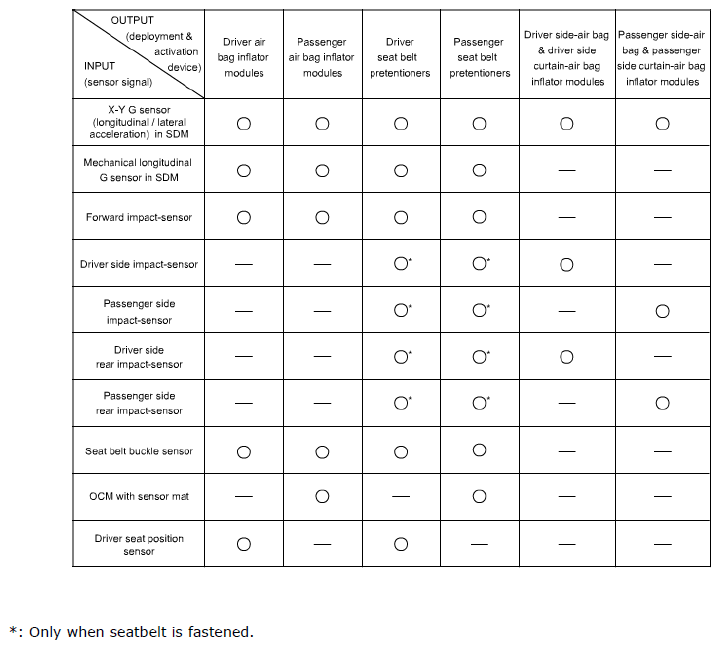

Fig 1: Air Bag System Input/Output Table
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
