Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

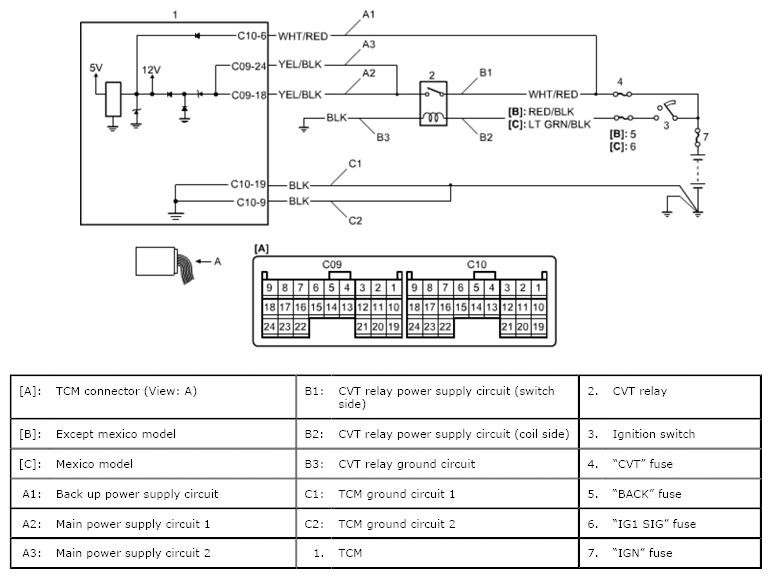

Fig 1: TCM Power Supply And Ground Circuit Diagram
G06866761Courtesy of SUZUKI OF AMERICA CORP.
