Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

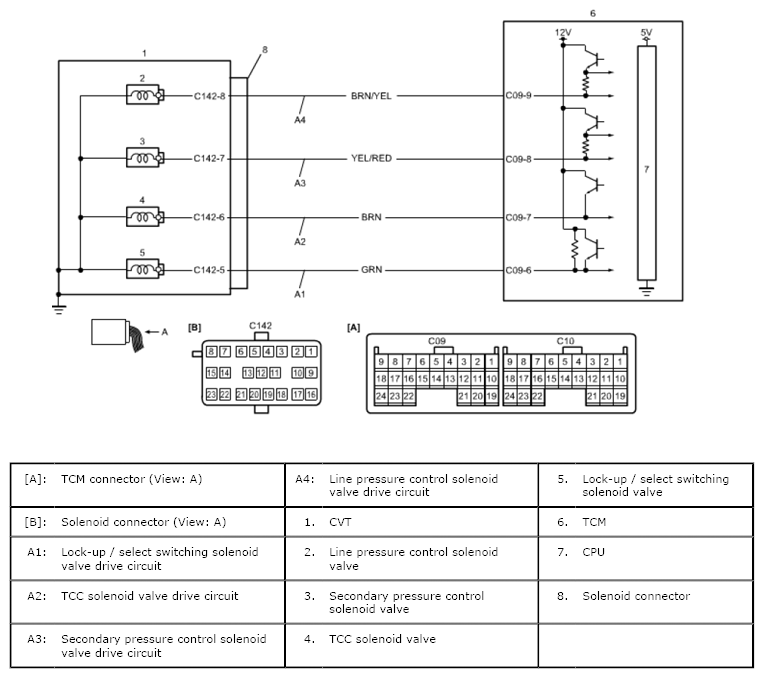

Fig 1: Toque Converter Clutch Circuit Performance Or Stuck Off Circuit Diagram
G06866742Courtesy of SUZUKI OF AMERICA CORP.
