CVT Symptom Diagnosis

WARNING: This page is about a different variant/trim than selected.

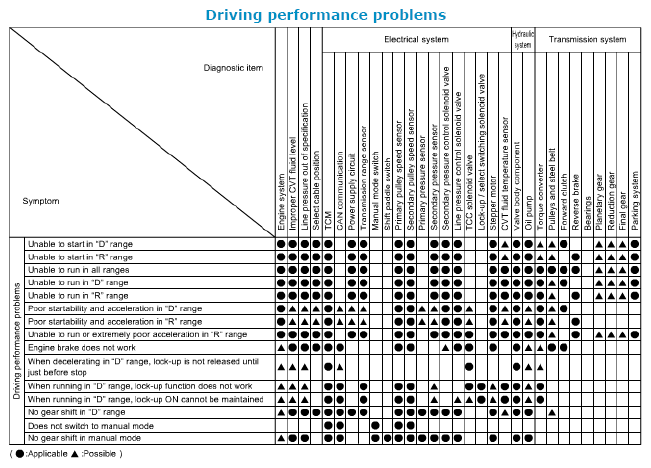

Fig 1: CVT Symptom Diagnosis - Driving Performance Problems Reference Chart
G06866735Courtesy of SUZUKI OF AMERICA CORP.

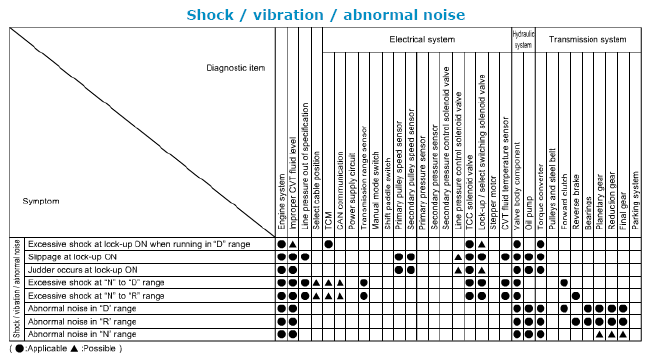

Fig 2: CVT Symptom Diagnosis - Shock/Vibration/Abnormal Noise Reference Chart
G06866736Courtesy of SUZUKI OF AMERICA CORP.

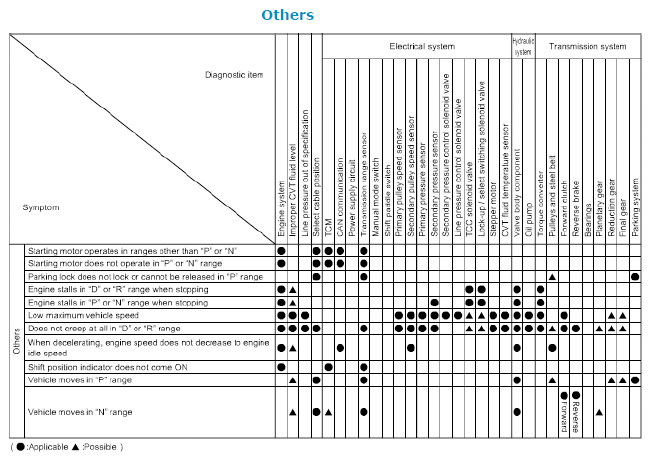

Fig 3: CVT Symptom Diagnosis - Reference Chart For Others
G06866737Courtesy of SUZUKI OF AMERICA CORP.
