Front Disc Brake Pad Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Hoist vehicle and remove front wheel.
Remove caliper pin bolts (1).

Fig 1: Identifying Caliper Pin Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove caliper (1) from caliper carrier (2).
NOTE: If the removed brake caliper (1) is left hung by the brake hose, the brake hose may be damaged due to the tension caused by the caliper's weight. Hang a removed brake caliper with a wire hook (4) or the like to relieve the brake hose of the tension.
Remove brake pads (3).

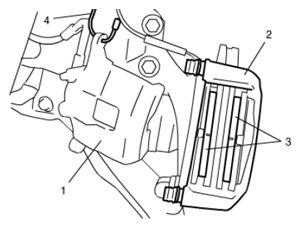

Fig 2: Identifying Brake Pads
Courtesy of SUZUKI OF AMERICA CORP.
Remove brake pad spring (1) as show in figure.

Fig 3: Identifying Brake Pad Spring
Courtesy of SUZUKI OF AMERICA CORP.
