Radiator Cooling Fan Motor
WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

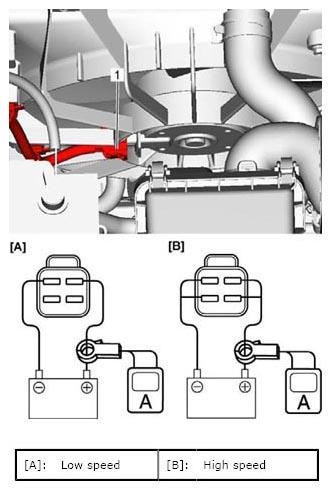

- Disconnect radiator cooling fan motor connector (1).
- Using service wire, connect radiator cooling fan motor connector and battery as shown in figure.
- Check that radiator cooling fan motors rotate smoothly and properly.
If any abnormality is found, replace corresponding radiator cooling fan motor.
Reference: Fan motor specified current at 12 V
LOW: 4.8 - 7.8 A
HIGH: 7.4 - 10.9 A
