Turn Signal and Hazard Warning Relay Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable at battery.
Remove junction block (1).
Remove turn signal and hazard warning relay (2) from junction block.

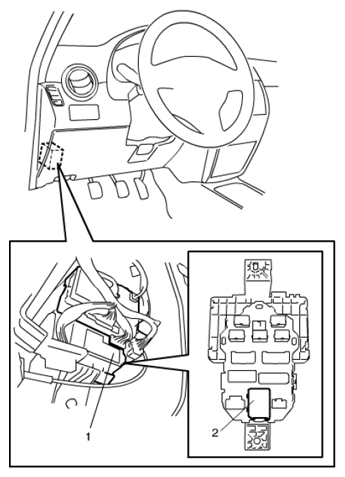

Fig 1: Removal And Installation Of Turn Signal And Hazard Warning Relay
Courtesy of SUZUKI OF AMERICA CORP.
