License Light Removal and Installation (Sedan): Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Remove trunk lid trim (1) from trunk lid panel.

Fig 1: Identifying Trunk Lid Trim
Courtesy of SUZUKI OF AMERICA CORP.
Remove trunk lid license garnish referring to TRUNK LID LOCK ASSEMBLY COMPONENTS (SEDAN) .
Disconnect coupler from license light socket.
Remove license light bulb (1) as shown.
Push locking part (2) to arrow direction, and then remove license light lens.

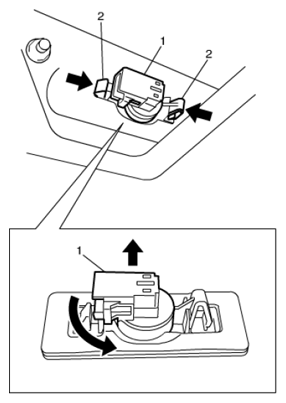

Fig 2: Removing License Light Lens
Courtesy of SUZUKI OF AMERICA CORP.
