Front Fog Light Removal and Installation (If Equipped): Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable at battery.
Remove front bumper. Refer to FRONT BUMPER AND REAR BUMPER COMPONENTS .
Disconnect coupler from fog light assembly (1).
Remove front fog light as follows.
Hatchback
- Detach fog light pushing clips to arrow direction, and remove front fog light.

  Fig 1: Removing Front Fog Light
  Courtesy of SUZUKI OF AMERICA CORP.
Sedan
- Remove fog light screws (2), and remove front fog light.

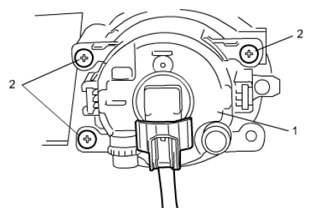

  Fig 2: Removing Fog Light Screws
  Courtesy of SUZUKI OF AMERICA CORP.
