Master Cylinder Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Clean outside of master cylinder.
Remove battery referring to BATTERY REMOVAL AND INSTALLATION .
Disconnect fluid level switch coupler (1) and clamp (3) from reservoir (2).

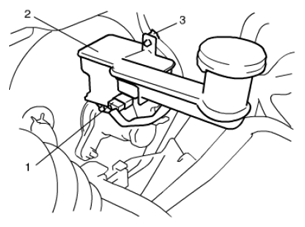

Fig 1: Disconnecting Fluid Level Switch Coupler And Clamp From Reservoir
Courtesy of SUZUKI OF AMERICA CORP.
Drain brake fluid in reservoir.
Disconnect clutch reservoir hose from reservoir (M/T model).
Disconnect brake pipes (1) connected to master cylinder.
Remove master cylinder fixing nuts (2).
Remove master cylinder (3) and O-ring.

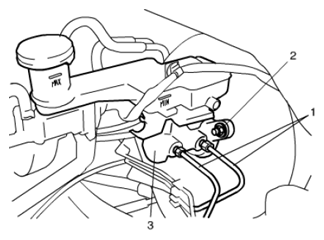

Fig 2: Identifying Master Cylinder And O-Ring
Courtesy of SUZUKI OF AMERICA CORP.
