When replacing compressor
WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Be sure to use specified compressor oil or an equivalent compressor oil.
Compressor oil is sealed in each new compressor by the amount required for A/C system. Therefore, when using a new compressor, drain the calculated amount of oil from it.

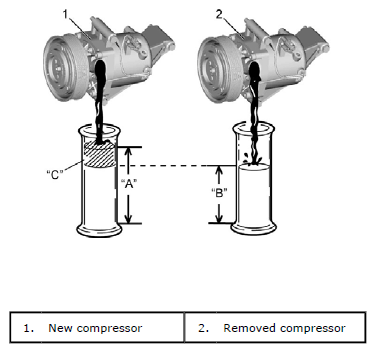

"C" = "A" - "B"
"C": Amount of oil to be drained
"A": Amount of oil in a new compressor
"B": Amount of oil in removed compressor
NOTE:
Compressor assembly supplied from factory is filled up with the following amount of oil.
: Compressor oil 99000-99022-00E (Compressor oil (DH-PS, 250cc))
Oil amount in compressor
80 - 100 cm 3 (80 - 100 ml, 2.71 - 3.38 US.oz, 2.82 - 3.52 Imp.oz)
