Magnet Clutch Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Remove compressor from vehicle referring to COMPRESSOR ASSEMBLY REMOVAL AND INSTALLATION: MANUAL A/C .
Fix armature plate (1) with special tool and remove armature plate bolt (2).
Special Tool

(A): 09991-06310 Armature plate holder Refer to SPECIAL TOOL
Remove armature plate (1).

Fig 1: Removing Armature Plate
Courtesy of SUZUKI OF AMERICA CORP.
Remove shims from shaft.
Remove circlip (1) using special tool.
Special Tool

(B): 09900-06107 Snap ring pliers (opening type) Refer to SPECIAL TOOL

Fig 2: Removing Circlip Using Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
Remove magnet clutch pulley (2).
NOTE:
- If it is difficult to remove magnet clutch pulley by hand, use puller (1).
- Do not damage magnet clutch pulley when using puller.

  Fig 3: Removing Magnet Clutch Pulley
  Courtesy of SUZUKI OF AMERICA CORP.
Remove magnet clutch lead clamps.

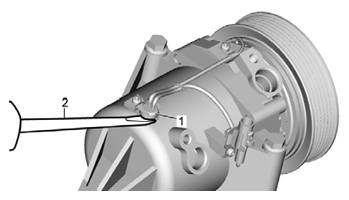

Detach thermal switch (1) from compressor by using flat head screw driver (2).

Fig 4: Detaching Thermal Switch From Compressor By Using Flat Head Screw Driver
Courtesy of SUZUKI OF AMERICA CORP.
Remove circlip (1) by using special tool.
Special Tool

(B): 09900-06107 Snap ring pliers (opening type) Refer to SPECIAL TOOL
Remove magnet clutch coil (2) from compressor (3).

Fig 5: Removing Magnet Clutch Coil From Compressor
Courtesy of SUZUKI OF AMERICA CORP.
