Expansion Valve Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Recover refrigerant from the A/C system with recovery and recycling equipment referring to "RECOVERY " in OPERATION PROCEDURE FOR REFRIGERANT CHARGE: MANUAL A/C .
Loosen a bolt (1) and remove pipes from expansion valve (2).
Loosen bolts (3) and remove expansion valve.

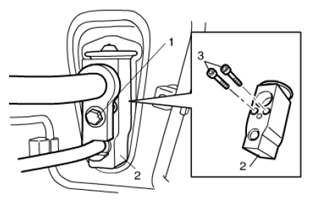

Fig 1: Identifying Bolts And Expansion Valve
Courtesy of SUZUKI OF AMERICA CORP.
