Desiccant Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove condenser assembly referring to CONDENSER ASSEMBLY REMOVAL AND INSTALLATION: MANUAL A/C .
  2. Remove circlip (4) using special tool.

    Special Tool

    : 09900-06107 Snap ring pliers (opening type) SPECIAL TOOL

  3. Remove the cap (1) from the receiver/dryer tank (2).
  4. Remove desiccant (3).

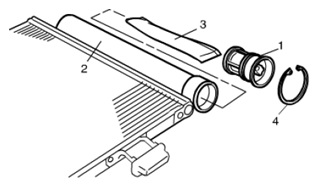

    Fig 1: Identifying Cap From Receiver/Dryer Tank
    G06867664Courtesy of SUZUKI OF AMERICA CORP.
