Condenser Cooling Fan Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative (-) cable at battery.
  2. Disconnect condenser cooling fan motor coupler.
  3. Remove reservoir (1) from radiator.
  4. Remove condenser cooling fan (2) from radiator (3).

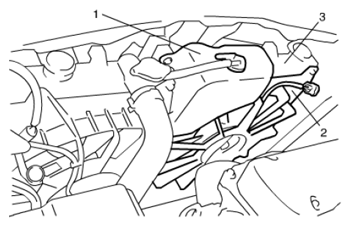

    Fig 1: Identifying Condenser Cooling Fan And Radiator
    G06867659Courtesy of SUZUKI OF AMERICA CORP.
