Condenser Cooling Fan Inspection

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check condenser cooling fan motor for resistance between terminal "a" and "b" as shown. If there is no continuity, replace condenser cooling fan motor.

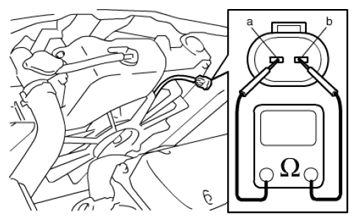

    Fig 1: Checking Condenser Cooling Fan Motor Resistance
    G06867660Courtesy of SUZUKI OF AMERICA CORP.
  2. Connect battery to condenser cooling fan motor terminal "a" and "b" as shown in figure, and then check if the condenser cooling fan motor operates smoothly.

    Reference

    Condenser cooling fan specified current at 12 V: 7 A maximum

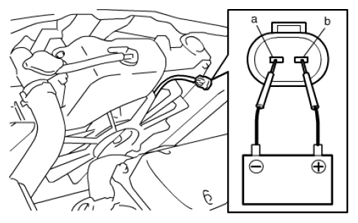

    Fig 2: Connecting Battery To Condenser Cooling Fan Motor Terminals
    G06867661Courtesy of SUZUKI OF AMERICA CORP.
