Condenser Assembly Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Recover refrigerant from A/C system referring to OPERATION PROCEDURE FOR REFRIGERANT CHARGE: MANUAL A/C .
NOTE: The amount of removed compressor oil must be measured for replenishing compressor oil.
Remove front bumper referring to FRONT BUMPER AND REAR BUMPER COMPONENTS .

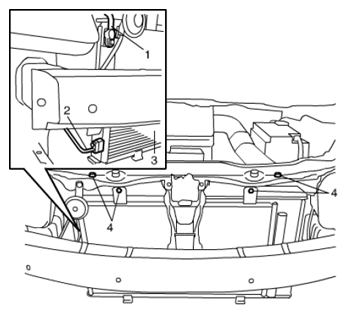

Disconnect discharge hose (1) and liquid pipe (2) from condenser assembly (3).
Remove radiator assembly and condenser assembly mounting bolts (4).

Fig 1: Identifying Radiator Assembly And Condenser Assembly Mounting Bolts
Courtesy of SUZUKI OF AMERICA CORP.

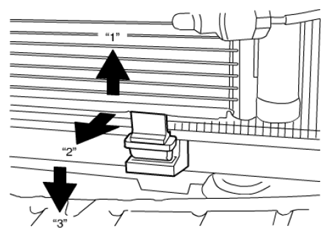

Move condenser assembly from the vehicle in the arrow direction in the order of 1, 2 and 3 as shown, and it can be removed.

Fig 2: Moving Condenser Assembly From Vehicle
Courtesy of SUZUKI OF AMERICA CORP.
