A/C System Relay Inspection
WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not use blue relay for the substitute of white relay because internal durability of a blue relay is different from the durability of a white relay.
- Disconnect negative (-) cable from battery.

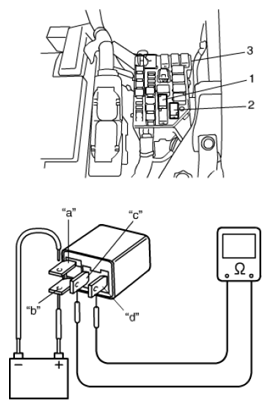

- Remove compressor relay (1) or condenser cooling fan relay (2) from main fuse box (3).
- Check that there is no continuity between terminal "c" and "d". If there is continuity, replace relay.
- Connect battery positive (+) terminal to terminal "b" of relay and battery negative (-) terminal to terminal "a" of relay, and then check continuity between terminal "c" and "d". If there is no continuity, replace relay.
