A/C Refrigerant Pressure Sensor Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Recover refrigerant from the A/C system with the recovery and recycling equipment referring to "RECOVERY " in OPERATION PROCEDURE FOR REFRIGERANT CHARGE: MANUAL A/C .
Disconnect negative (-) cable from battery.
Disconnect A/C refrigerant pressure sensor connector.
Remove A/C refrigerant pressure sensor (1) from liquid pipe (2).

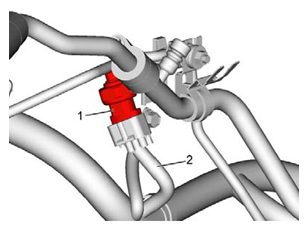

Fig 1: Identifying A/C Refrigerant Pressure Sensor
Courtesy of SUZUKI OF AMERICA CORP.
