Temperature Control Actuator Removal and Installation: Installation
WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
Reverse removal procedure noting the following instructions.
Reference: TEMPERATURE CONTROL ACTUATOR AND ITS CIRCUIT INSPECTION: AUTO A/C
- Before installing actuator, make sure that position of actuator lever is in between "MAX HOT" position and "MAX COOL" position.

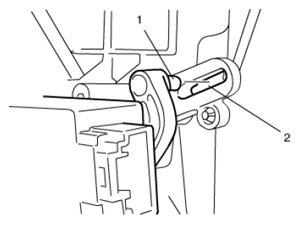

- Be sure to insert pin (1) of temperature control actuator into the groove (2) of link.
