Inside Air Temperature Sensor Removal and Installation: Removal
WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative (-) cable at battery.
- Remove audio unit from instrument panel referring to AUDIO UNIT REMOVAL AND INSTALLATION (IF EQUIPPED) .
- Remove combination meter from instrument panel referring to COMBINATION METER REMOVAL AND INSTALLATION .

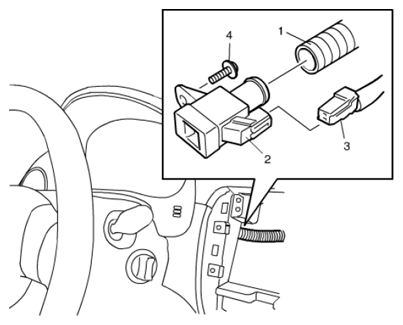

- Remove connector (3) and aspirator hose (1) from inside air temperature sensor (2).
- Remove inside air temperature sensor (2) from instrument panel by removing screw (4).
