HVAC Control Module Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove audio unit from instrument panel referring to AUDIO UNIT REMOVAL AND INSTALLATION (IF EQUIPPED) .
  2. Remove HVAC control module (1) with its garnish (2) from instrument panel.
  3. Remove HVAC control module from garnish.

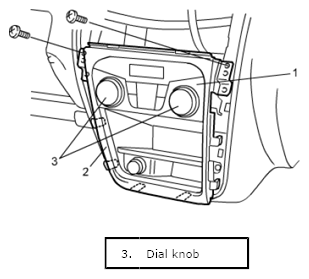

    Fig 1: Removing HVAC Control Module With Garnish From Instrument Panel
    G06868783Courtesy of SUZUKI OF AMERICA CORP.
