Air Flow Control Actuator Removal and Installation: Removal
WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative cable at battery.
- Remove steering column hole cover from instrument panel.
- Remove driver side foot duct from HVAC unit.

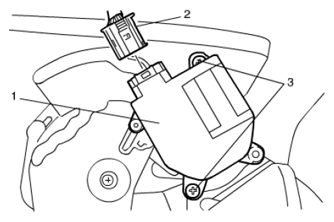

- Disconnect air flow control actuator connector (2).
- Remove air flow control actuator (1) from HVAC unit by removing screws (3).
