Serial communication line of BCM (1)
WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

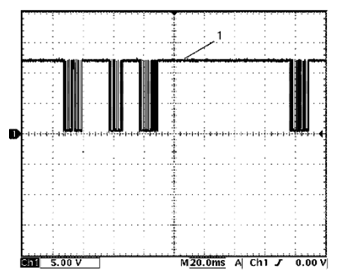

WAVEFORM NO. 2 REFERENCE CHART
| Measurement terminal |
CH1: "G20-13" to "G20-23" |
| Oscilloscope setting |
CH1: 5 V/DIV
TIME: 20 ms/DIV |
| Measurement condition |
Ignition switch is at ON position |
Courtesy of SUZUKI OF AMERICA CORP.
