Using SUZUKI Scan Tool

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn off ignition switch.
  2. Connect SUZUKI scan tool to DLC (1) located on underside of driver side instrument panel.

    Special Tool

    (A): SUZUKI scan tool (SUZUKI-SDT  )

    Fig 1: Connecting Suzuki Scan Tool To DLC
    G06868750Courtesy of SUZUKI OF AMERICA CORP.
  3. Shine an 100 W incandescent light or the like on sunload sensor (1) 100 mm (3.94 in.) high from the sensor
    NOTE: Do not use fluorescent light, LED and etc. for this check. HVAC control module detects "Sun Load Sensor Circuit Malfunction" and the DTC is displayed on scan tool because light volume is insufficient.

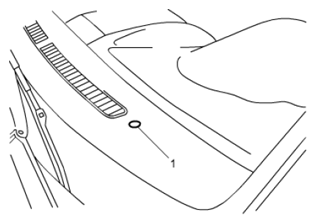

    Fig 2: Identifying Sunload Sensor
    G06868751Courtesy of SUZUKI OF AMERICA CORP.
  4. Turn on ignition switch.
  5. Read DTC according to instructions displayed on SUZUKI scan tool and print it or write it down. Refer to SUZUKI scan tool operators manual for further details.
    CAUTION: When scan tool cannot access HVAC control module, attempt to access HVAC control module on another vehicle for checking if scan tool is accessible. If scan tool is accessible in this check, scan tool is in good condition. Then check DLC and serial data line (circuit) on the vehicle.
  6. After completing the check, turn ignition switch to OFF position and disconnect SUZUKI scan tool from DLC.
