History DTC

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Turn on ignition switch and perform the following steps to start history DTC check within 15 seconds.
1. Move temperature selector (1) to set temperature setting 25 °C (72 °F).
2. Push A/C switch (2) and "MODE" (air flow) switch (3) on auto A/C panel simultaneously within 15 seconds of turning on ignition switch at Step 1).

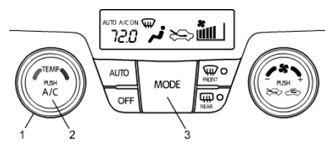

  Fig 1: Identifying A/C Switch And "Mode" (Air Flow) Switch On Auto A/C Panel
  Courtesy of SUZUKI OF AMERICA CORP.
LCD displays history DTCs in order of descending priorities at 4 seconds intervals.
LCD displays "End" after those all-stored DTCs are displayed and return to first DTC.

LCD repeats displaying until one of conditions to cancel history DTC check is satisfied.
NOTE:
- "FAN" mark (1) is also indicated on LCD during the history DTC check.
- When no DTC exists, LCD repeats displaying "End" at 4 seconds intervals.
- History DTC check is cancelled when one of the following conditions is satisfied.
  - Ignition switch is turned off.
  - A/C switch and "MODE" (air flow) switch on auto A/C panel are pushed simultaneously.
  - 3 minutes have elapsed since DTC check has begun.

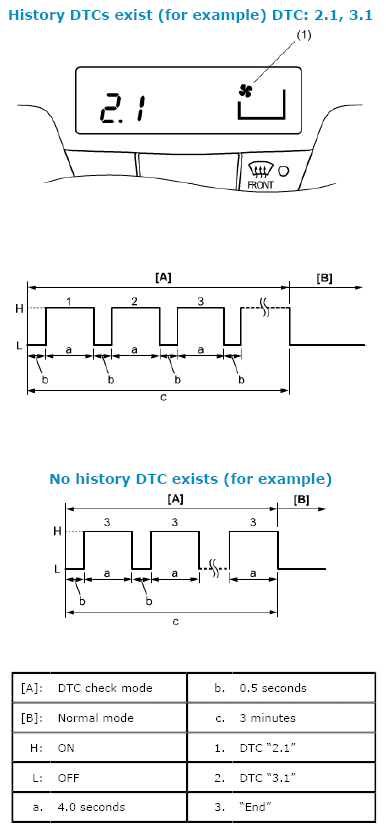

    Fig 2: Identifying History DTCs
    Courtesy of SUZUKI OF AMERICA CORP.
After completing current DTC check, turn off ignition switch.
