Visual inspection
WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
- Remove all carbon deposits from all valves (1).
- Check each valve for wear, burn or distortion at its face and stem end.
Replace it if necessary.

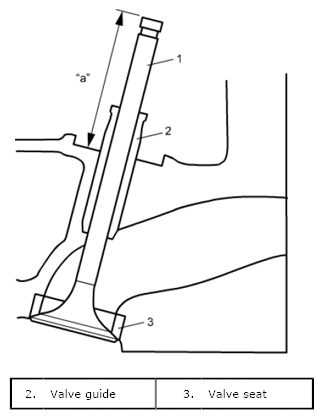

- Measure valve protrusion length "a".
If measured length is out of standard value, replace valve.
Valve protrusion length "a"
Standard
IN: 44.00 - 44.60 mm (1.733 - 1.755 in.)
EX: 43.55 - 44.15 mm (1.715 - 1.738 in.)
