Throttle Body Assembly Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable from battery.
Drain coolant, see COOLING SYSTEM DRAINING .
Remove air cleaner assembly, see Air Cleaner Assembly Removal and Installation .
Disconnect engine coolant hoses (2) and electric connector (3) from throttle body assembly (1).

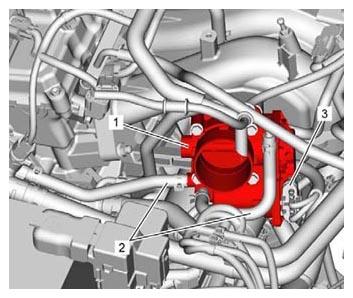

Fig 1: Disconnecting Engine Coolant Hoses And Electric Connector From Throttle Body Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Remove throttle body assembly and its gasket from intake manifold.
