Throttle Body Assembly Removal and Installation: Installation

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Reference: THROTTLE BODY CLEANING

Clean mating surfaces and install new throttle body gasket (1) to intake manifold.

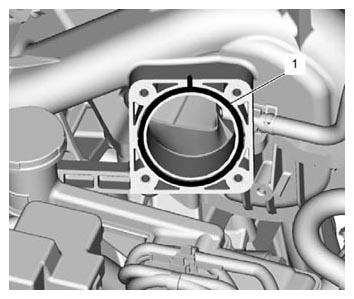

Fig 1: Identifying Throttle Body Gasket
Courtesy of SUZUKI OF AMERICA CORP.
Install throttle body assembly (1) to intake manifold.
Connect electric connector (3) and coolant hoses (2) to throttle body assembly (1).

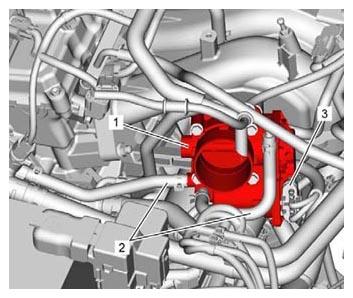

Fig 2: Connecting Electric Connector And Coolant Hoses To Throttle Body Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Install air cleaner assembly, see Air Cleaner Assembly Removal and Installation .
Refill cooling system, see COOLING SYSTEM REFILLING .
Connect negative (-) cable to battery.
Check for coolant leaks, see ENGINE COOLING SYSTEM INSPECTION .
