Connecting rod alignment
WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

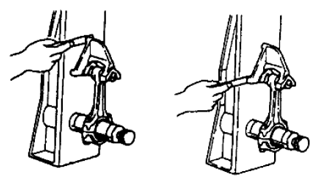

Mount connecting rod on aligner to check for bow and twist.
If measured value exceeds the limit, replace it.
Connecting rod alignment
Limit on bow: 0.05 mm (0.0019 in.)
Limit on twist: 0.10 mm (0.0039 in.)
Courtesy of SUZUKI OF AMERICA CORP.
