Intake Manifold Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable from battery.
Remove windshield wiper arms with wiper blades, see WINDSHIELD WIPER REMOVAL AND INSTALLATION .
Remove cowl top garnish and cowl top panel, see COWL TOP AND FRONT LOWER CROSSMEMBER COMPONENTS .
Remove air cleaner assembly, see Air Cleaner Assembly Removal and Installation .
Remove throttle body assembly, see Throttle Body Assembly Removal and Installation .
Disconnect the following wiring harness connectors and hoses.
- EVAP canister purge valve connector (1)
- IMT valve actuator connector (2)
- Brake booster hose (3)
- PCV valve hose (4)
- Purge hose (5)
- Engine harness clamps

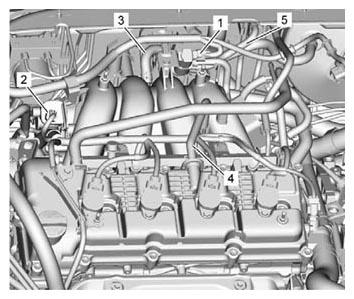

  Fig 1: Identifying Wiring Harness Connectors And Hoses
  Courtesy of SUZUKI OF AMERICA CORP.
Remove intake manifold (1) and intake manifold gaskets (2) from cylinder head.

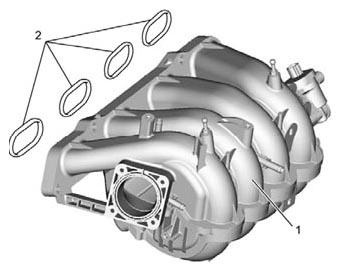

Fig 2: Removing Intake Manifold And Intake Manifold Gaskets From Cylinder Head
Courtesy of SUZUKI OF AMERICA CORP.
