Intake Manifold Removal and Installation: Installation
WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
Reverse removal procedure for installation noting the following.

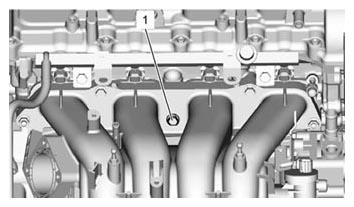

- Use new Intake manifold bolt for position (1) in figure, because it is not reusable.
- Use new gaskets.
- Refill cooling system, see COOLING SYSTEM REFILLING .
- Check for coolant leaks, see ENGINE COOLING SYSTEM INSPECTION .
