Flywheel/Drive Plate Face Runout
WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

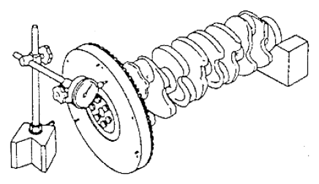

- Check flywheel for M/T model or drive plate for CVT model for runout using dial gauge and "V" blocks. If measured runout exceeds its limit, replace flywheel for M/T model or drive plate for CVT model.
Flywheel/drive plate face runout
Limit: 0.2 mm (0.0078 in.)
