Engine Mountings Components

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

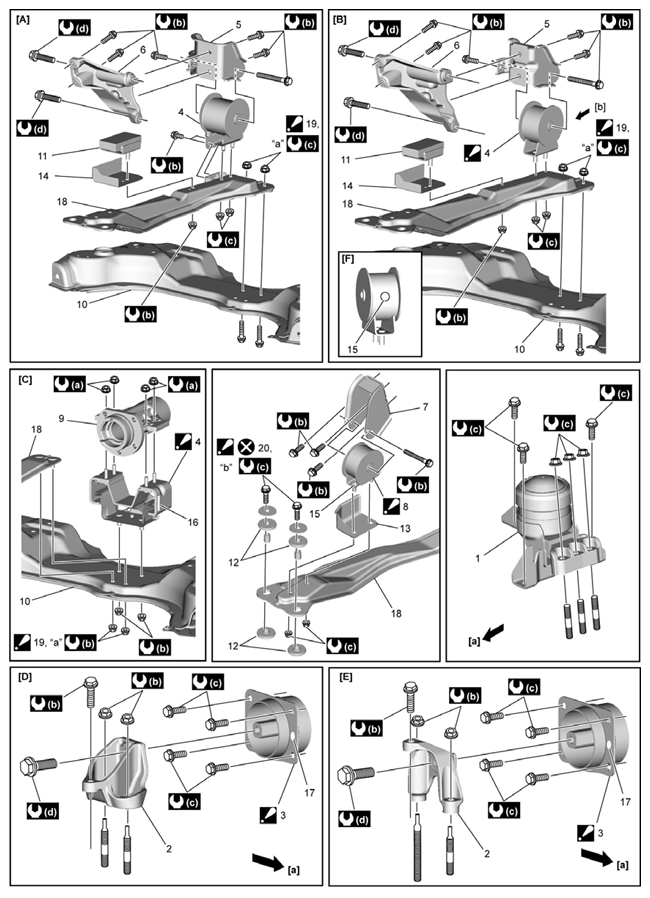

Fig 1: Identifying Engine Mountings Replacement Components (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

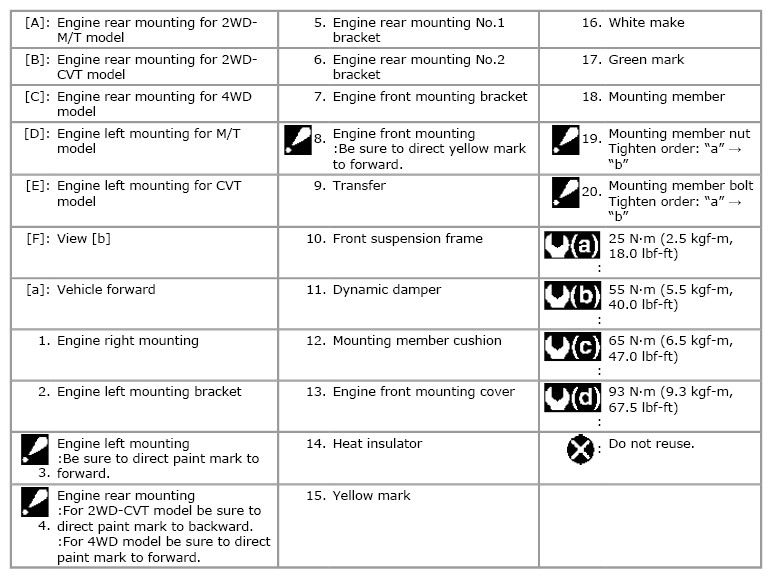

Fig 2: Identifying Engine Mountings Replacement Components (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
