Distortion of Gasket Surface

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Using straightedge and thickness gauge, check gasket surface for distortion and, if flatness exceeds its limit, repair It.

If repair is not possible, replace cylinder block.

Cylinder block flatness

Limit: 0.03 mm (0.001 in.)

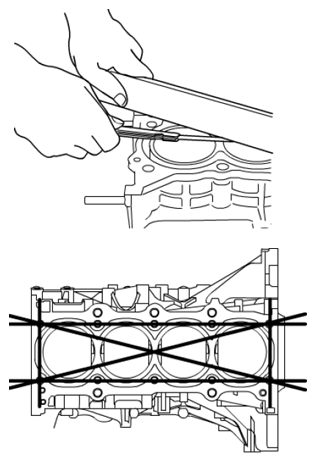

Fig 1: Measuring Cylinder Block Flatness
G06867100Courtesy of SUZUKI OF AMERICA CORP.
