Air Cleaner Assembly Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable from battery.

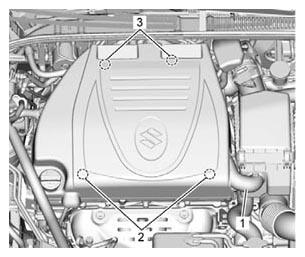

Remove engine cover according to the following procedure.
1. Disconnect engine cover hose (1) from air cleaner assembly.
2. Disconnect engine cover front side hook (2) from engine cover pin.
3. Disconnect engine cover rear side hook (3) from engine cover pin.
  CAUTION: When removing the engine cover, be careful not to hit it against the cowling front panel.

  Fig 1: Identifying Air Cleaner Replacement Components
  Courtesy of SUZUKI OF AMERICA CORP.

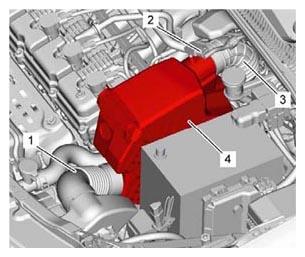

Remove air cleaner inlet hose (1).
Disconnect MAF and IAT sensor connector (2).
Remove air cleaner outlet hose (3).
Remove air cleaner assembly (4).

Fig 2: Identifying Cleaner Outlet Hose And Air Cleaner Assembly
Courtesy of SUZUKI OF AMERICA CORP.

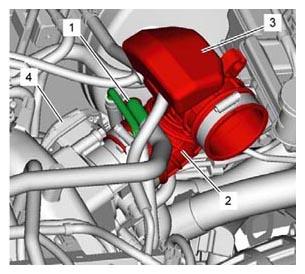

Remove air cleaner outlet hose according to the following procedure if necessary.
1. Disconnect breather pipe (1) from air cleaner outlet hose (2).
2. Remove air cleaner outlet hose with resonator (3) from electric throttle body assembly (4).

  Fig 3: Removing Air Cleaner Outlet Hose With Resonator From Electric Throttle Body Assembly
  Courtesy of SUZUKI OF AMERICA CORP.
