Valve Clearance Inspection and Adjustment: Notes

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For identification of each cylinder, refer to PRECAUTIONS FOR IDENTIFICATION OF CYLINDER .

Inspection

Disconnect negative (-) cable from battery.
Remove cylinder head cover.
Remove engine under cover.

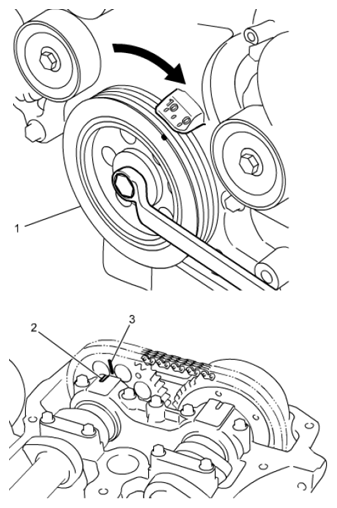

Align timing mark (3) on exhaust camshaft timing sprocket with match mark (2) on camshaft housing No. 1, by turning crankshaft pulley (1) clockwise with 19 mm wrench.

Fig 1: Aligning Timing Mark On Exhaust Camshaft Timing Sprocket With Match Mark On Camshaft Housing No. 1
Courtesy of SUZUKI OF AMERICA CORP.
Measure valve clearances with thickness gauge according to the following procedures.
1. Measure valve clearances of indicated valves "A" in figure.
2. Turn crankshaft pulley 360° clockwise with 19 mm wrench.
3. Measure valve clearances of indicated valves "B" in figure.

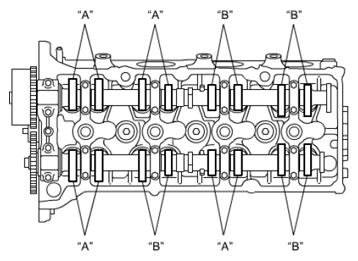

  Fig 2: Identifying Valve Positions
  Courtesy of SUZUKI OF AMERICA CORP.

  If valve clearance is out of specification, record valve clearance and adjust it to specification.

  Valve clearance specification

  When cold (ECT: 15 - 25°C (59 - 77°F)):
  - Intake: 0.16 - 0.24 mm (0.0063 - 0.0094 in.)
  - Exhaust: 0.31 - 0.39 mm (0.0123 - 0.0153 in.)
