Engine Vacuum Check

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Warm up engine to normal operating temperature.
  2. For CVT model, place select lever in "P" and apply parking brake.

    For M/T model, place gear shift lever in "Neutral" and apply parking brake.

  3. Remove engine cover. Refer to Air Cleaner Assembly Removal and Installation .
  4. Remove PCV hose (1) from PCV valve (2).
  5. Connect special tool to PCV hose (1).

    Special Tool

    (A): 09915-67311

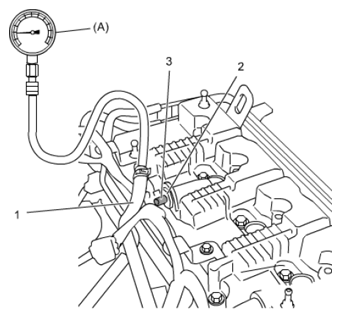

    Fig 1: Connecting Special Tool To PCV Hose
    G06866911Courtesy of SUZUKI OF AMERICA CORP.
  6. Close PCV valve (2) using tape (3) or the like.
  7. Start engine and turn off all electric loads.
  8. Read vacuum gauge at specified idle speed.

    Vacuum specification (at sea level)

    Standard: -65 kPa (-0.66 kgf/cm 2  , -9.43 psi, -0.65 bar) or less at specified idle speed

  9. After checking, disconnect special tool from PCV valve.
  10. Peel off tape from PCV hose.
  11. Connect PCV hose to PCV valve.
  12. Install engine cover.
