HVAC Control Unit Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable at battery.
Remove steering column hole cover from instrument panel.
Remove audio unit from instrument panel referring to AUDIO UNIT REMOVAL AND INSTALLATION (IF EQUIPPED) .
Remove driver side foot duct (1) from HVAC unit by removing screw (2).

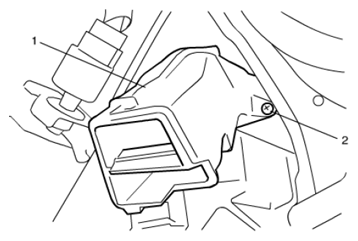

Fig 1: Identifying Driver Side Foot Duct And Screw
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect temperature control cable (1) and air flow control cable (2) from HVAC unit (3).

Fig 2: Disconnecting Temperature Control Cable And Air Flow Control Cable From HVAC Unit
Courtesy of SUZUKI OF AMERICA CORP.
Remove center garnish from instrument panel.
Remove HVAC control unit from instrument panel.
Disconnect connectors from HVAC control unit.
