Blower Motor Resistor Inspection
WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
Reference: BLOWER MOTOR RESISTOR REMOVAL AND INSTALLATION

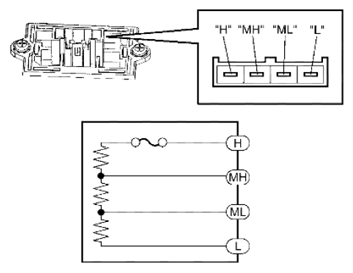

Measure each terminal-to-terminal resistance. If measured resistance is out of specification, replace blower motor resistor.
Blower motor resistor resistance
"H" - "MH": Approx. 0.43 Ω at 20 - 25 °C (68 - 77 °F)
"MH" - "ML": Approx. 0.6 Ω at 20 - 25 °C (68 - 77 °F)
"ML" - "L": Approx. 2.0 Ω at 20 - 25 °C (68 - 77 °F)
