Blower Motor Relay Inspection
WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative (-) cable at battery.
- Disable air bag system referring to 3 DISABLING AIR BAG SYSTEM (Advanced Air Bag).
- Remove junction block assembly (2).
- Disconnect blower motor relay (1) from junction block assembly (2).

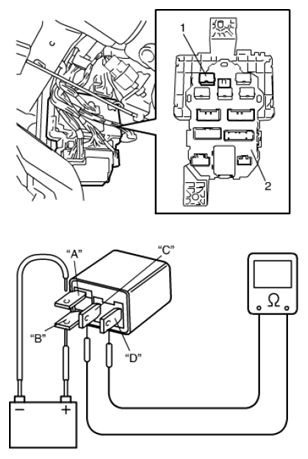

- Check that there is no continuity between terminal "C" and "D". If there is continuity, replace relay.
- Connect battery positive (+) terminal to terminal "B" of relay. Connect battery negative (-) terminal "A" of relay.
Check continuity between terminal "C" and "D".
If there is no continuity when relay is connected to the battery, replace relay.
