Air Intake Control Actuator Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative cable from battery.
Remove glove box from instrument panel.
Remove passenger side foot duct (1) from HVAC unit by removing screw (2).

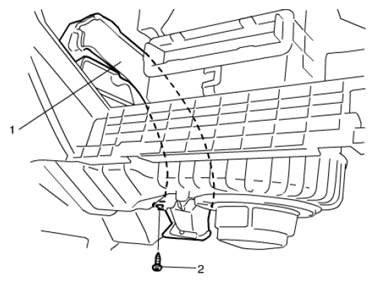

Fig 1: Identifying Passenger Side Foot Duct And Screw
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect connector (1) from air intake control actuator (2).
Detach linkage rod (3) and remove air intake control actuator (2) by removing screws (4).

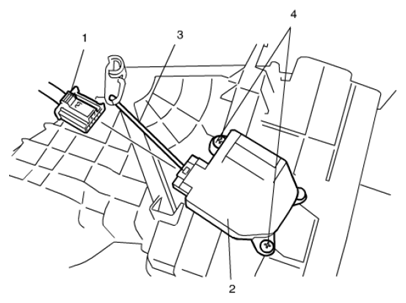

Fig 2: Removing Air Intake Control Actuator
Courtesy of SUZUKI OF AMERICA CORP.
