Head Lining Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Remove sun visor (1).

Fig 1: Removing Sun Visor
Courtesy of SUZUKI OF AMERICA CORP.

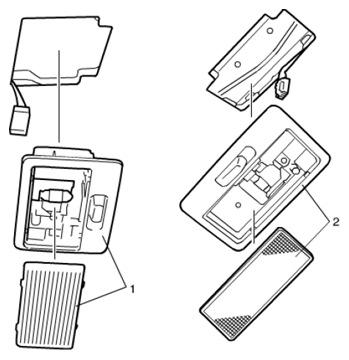

Remove dome lights of front (1) and center (2).

Fig 2: Removing Dome Lights Of Front And Center
Courtesy of SUZUKI OF AMERICA CORP.

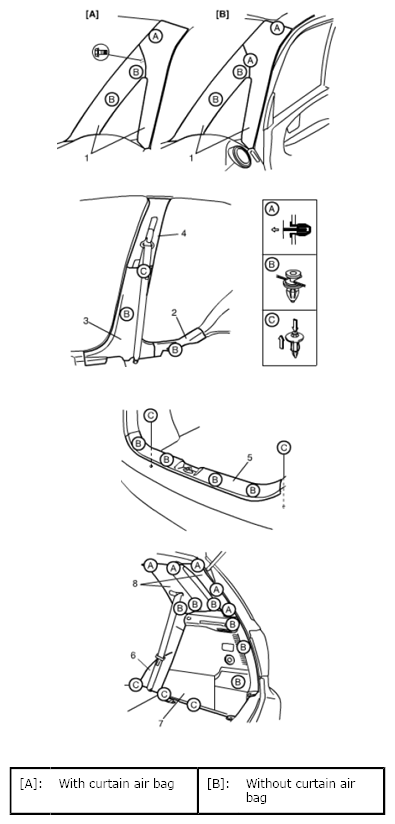

For hatchback model, remove front pillar upper trims (1), center pillar inner lower trims (3), rear side sill scuffs (2), center pillar inner upper trims (4), back panel trim (5) and rear trims (6).
Remove rear side air bag (if equipped) (7). Refer to REAR SIDE-AIR BAG (INFLATOR) MODULE REMOVAL AND INSTALLATION :Advanced Air Bag.
Remove rear quarter lower front trims (8) and rear quarter upper trims (9).

Fig 3: Removing Front Pillar Upper Trims Center Pillar Inner Lower Trims, Rear Side Sill Scuffs, Center Pillar Inner Upper Trims
Courtesy of SUZUKI OF AMERICA CORP.

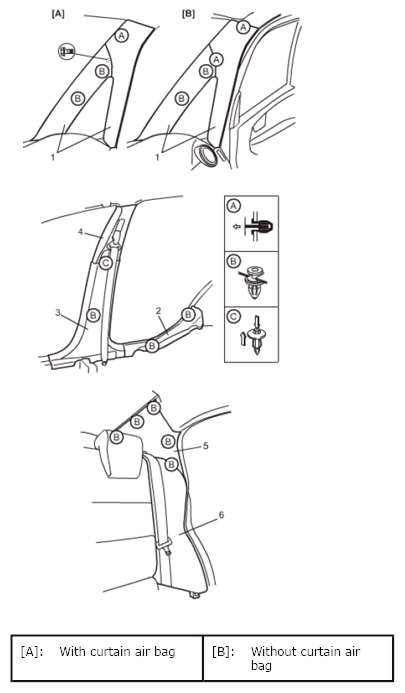

For sedan model, remove front pillar upper trims (1), center pillar inner lower trims (3), rear side sill scuffs (2), center pillar upper trims (4).
Remove rear seat side backs (6). Refer to REAR SEAT REMOVAL AND INSTALLATION .
Remove rear pillar inner trims (5).

Fig 4: Removing Front Pillar Upper Trims, Center Pillar Inner Lower Trims, Rear Side Sill Scuffs
Courtesy of SUZUKI OF AMERICA CORP.

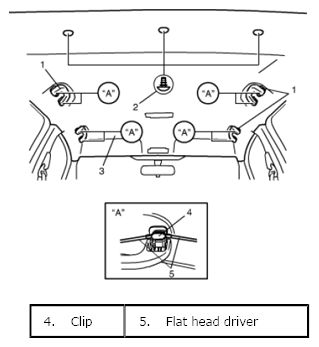

Remove assistant grip (1).
Remove head lining clips (2) at rear end and remove head lining (3).

Fig 5: Removing Head Lining Clips At Rear End
Courtesy of SUZUKI OF AMERICA CORP.
