Floor Carpet Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Remove front seat and rear seat referring to FRONT SEAT REMOVAL AND INSTALLATION and REAR SEAT REMOVAL AND INSTALLATION .
Remove seat belt lower anchor bolts (front and rear).
Remove center pillar inner lower trims (3), side sill scuffs (1) (front and rear), front pillar lower trims (2), back panel trim (4), and rear trims (5).
Remove rear side air bag (if equipped) (6). Refer to REAR SIDE-AIR BAG (INFLATOR) MODULE REMOVAL AND INSTALLATION .
Remove rear quarter lower front trims (7).

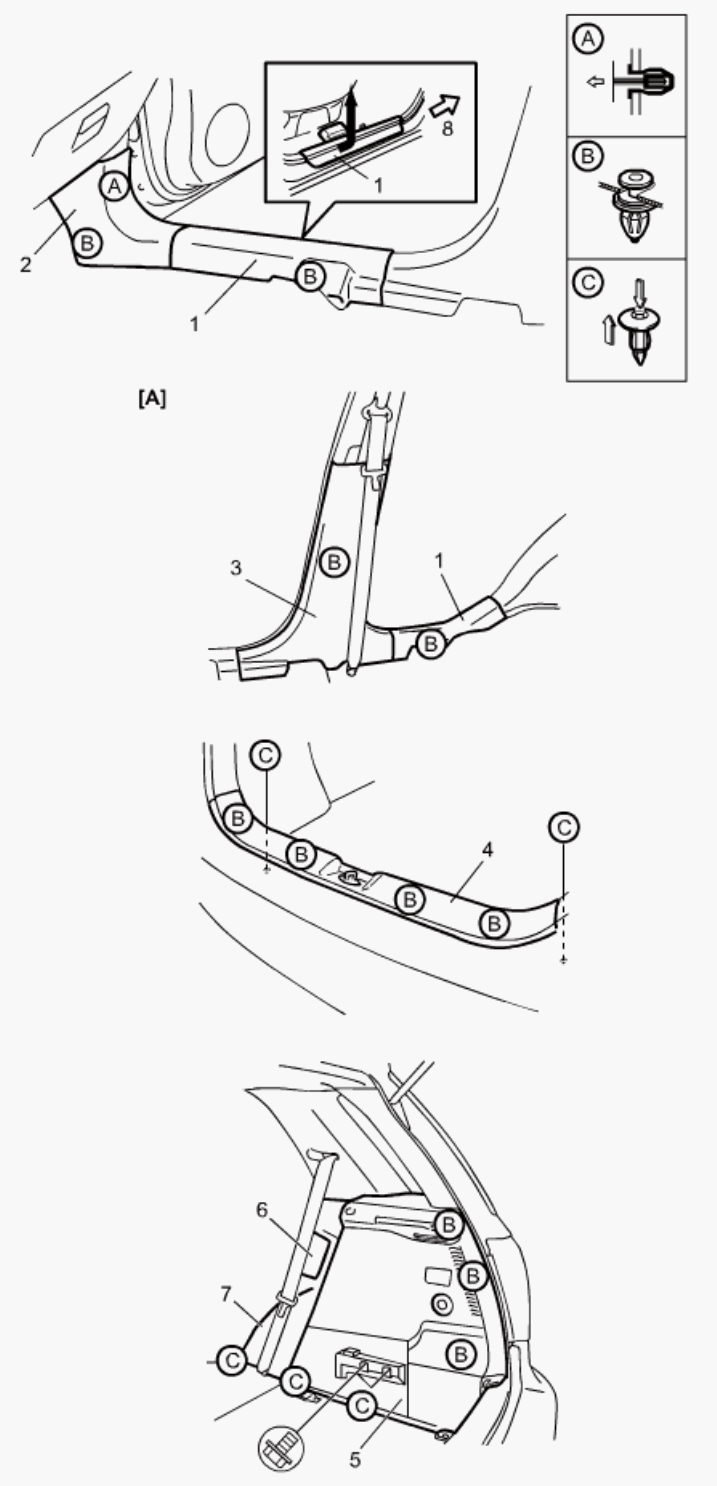

Fig 1: Removal And Installation Of Floor Carpet (1 of 2)
Courtesy of SUZUKI OF AMERICA CORP.

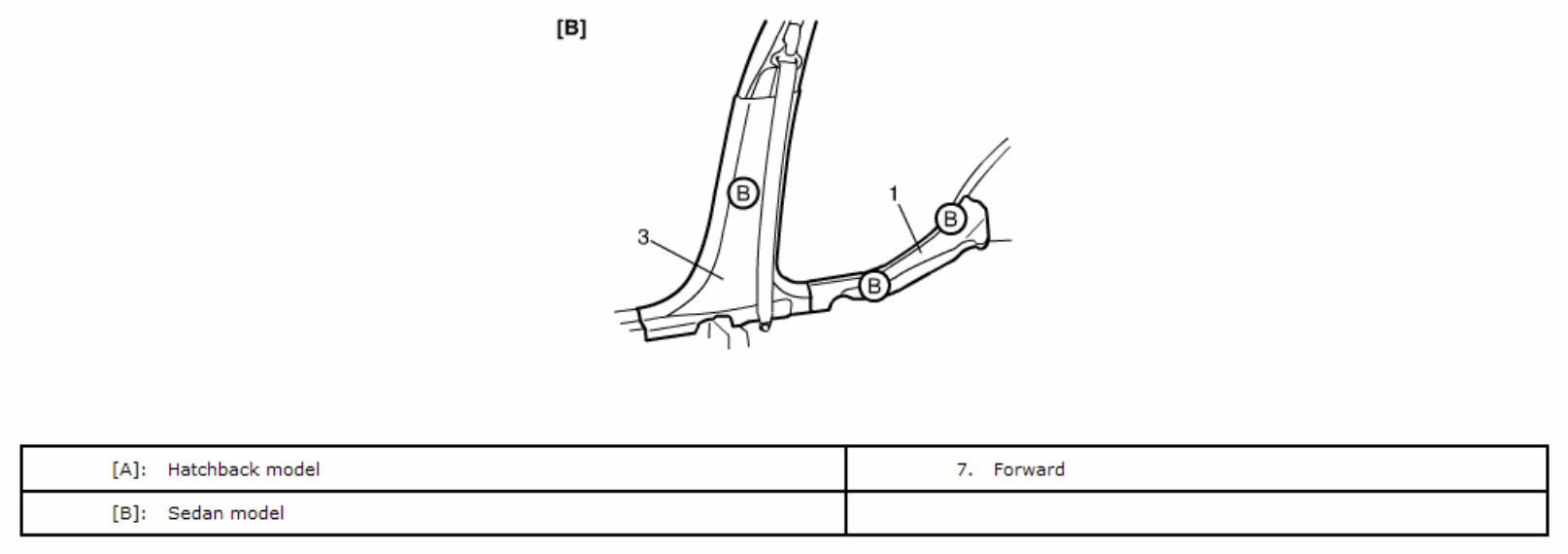

Fig 2: Removal And Installation Of Floor Carpet (2 of 2)
Remove console box referring to Console Box Components .
Remove floor carpet.
