F-1 Air Bag System Circuit Diagram (12ch)

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

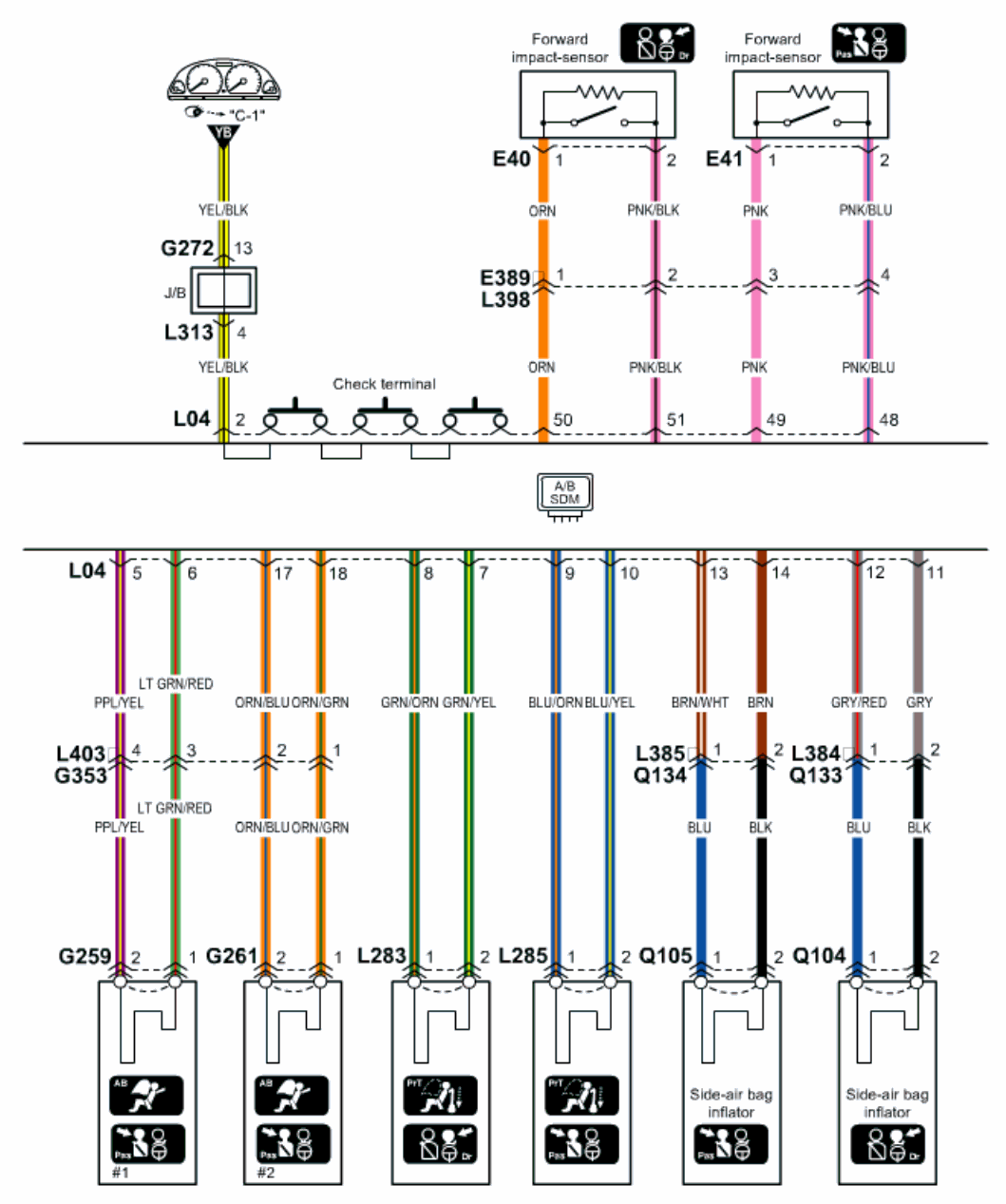

Fig 1: F-1 Air Bag System Circuit Diagram (12ch) (1 of 3)

Courtesy of SUZUKI OF AMERICA CORP.

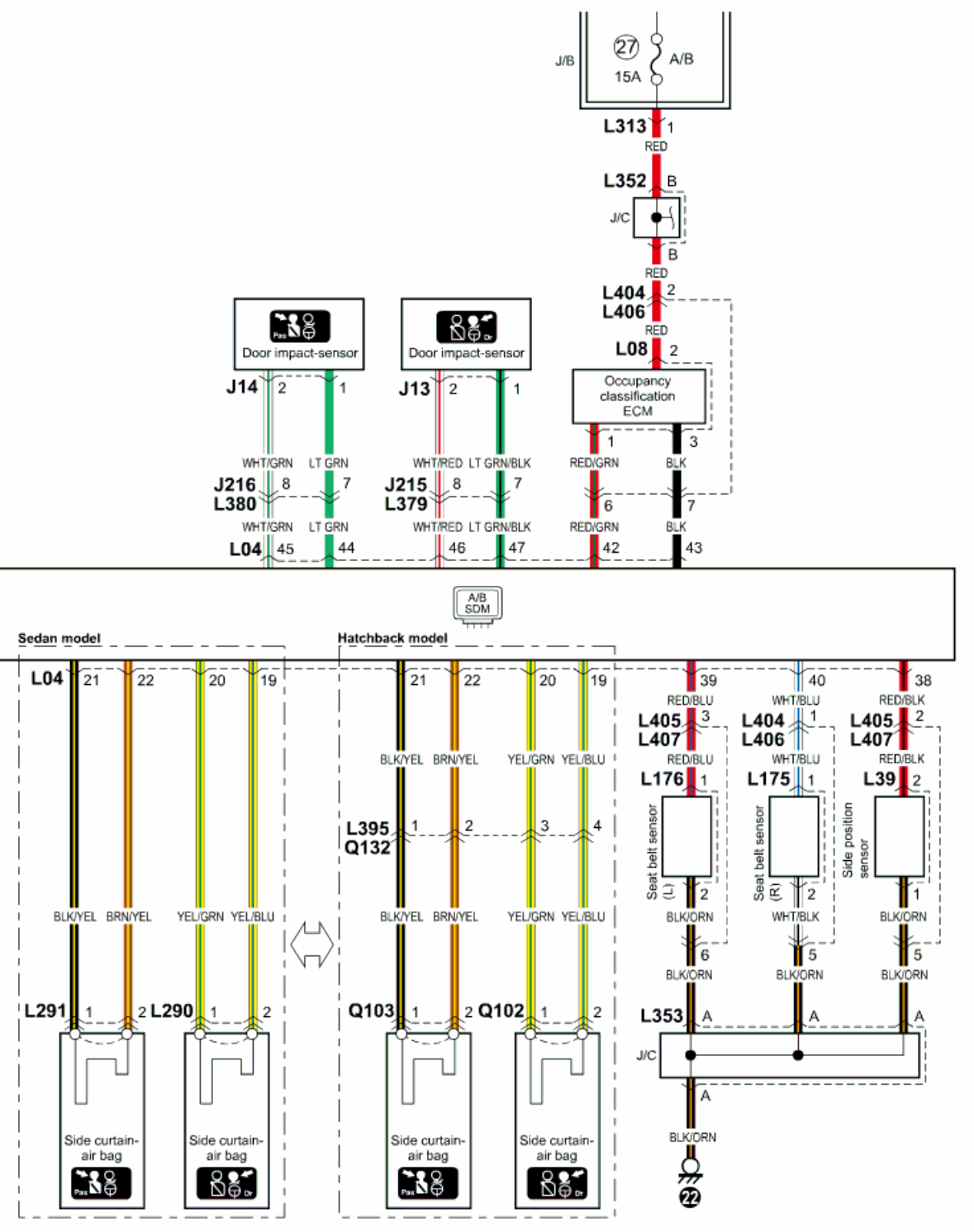

Fig 2: F-1 Air Bag System Circuit Diagram (12ch) (2 of 3)

Courtesy of SUZUKI OF AMERICA CORP.

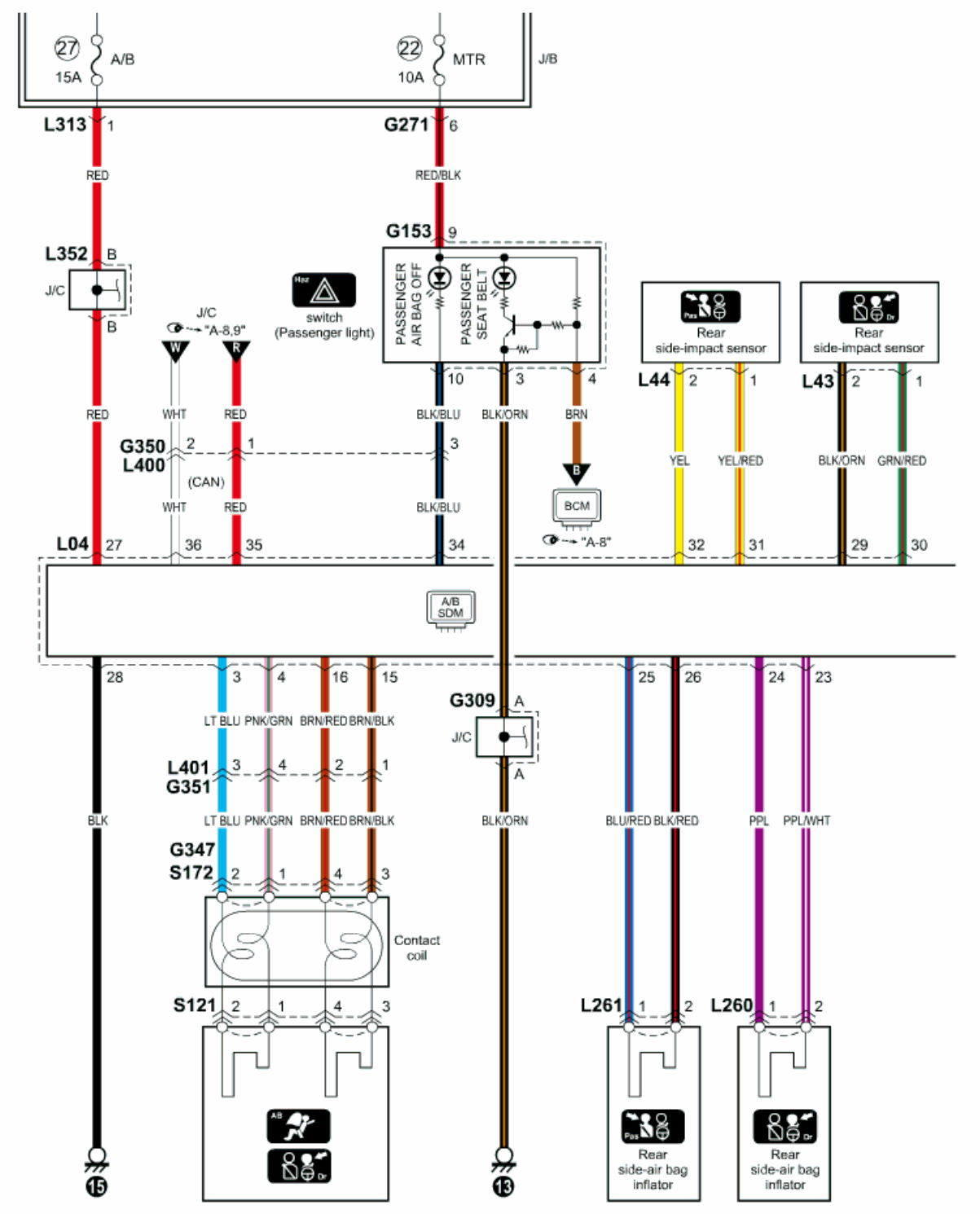

Fig 3: F-1 Air Bag System Circuit Diagram (12ch) (3 of 3)

Courtesy of SUZUKI OF AMERICA CORP.
