F-1 Air Bag System Circuit Diagram (10ch)

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

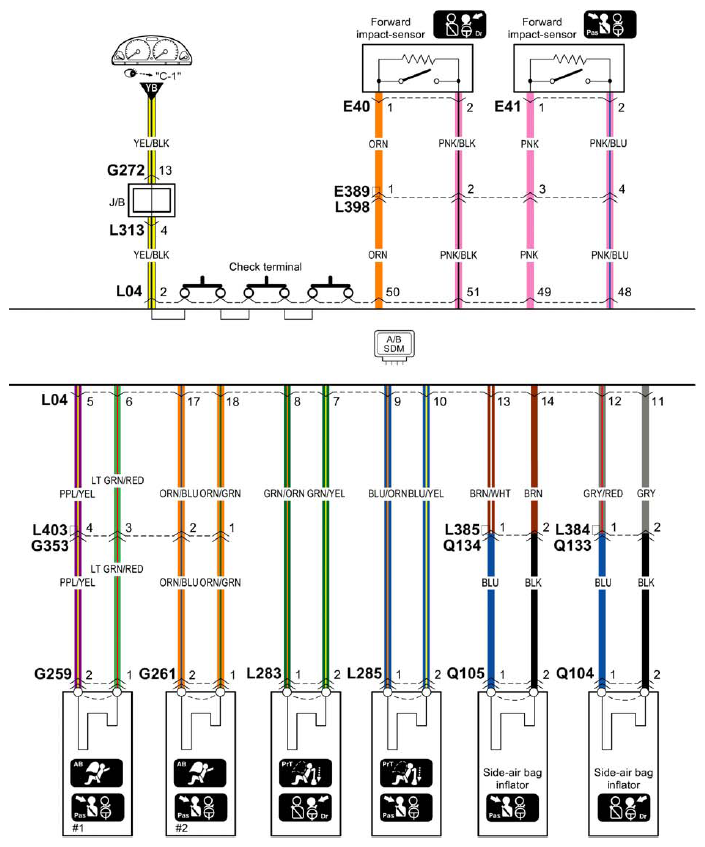

Fig 1: F-1 Air Bag System Circuit Diagram (10CH) (1 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

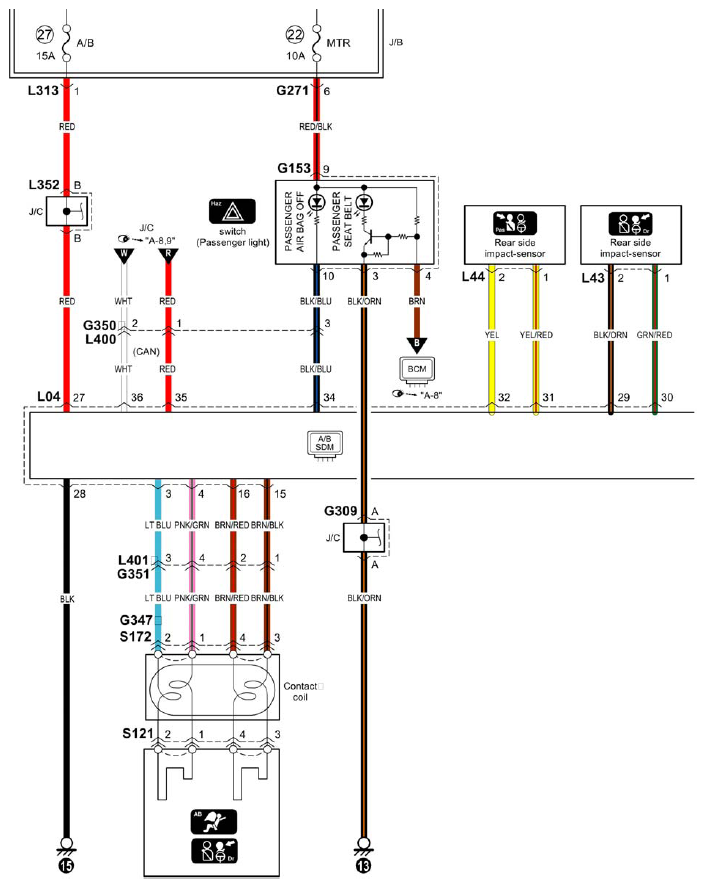

Fig 2: F-1 Air Bag System Circuit Diagram (10CH) (2 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

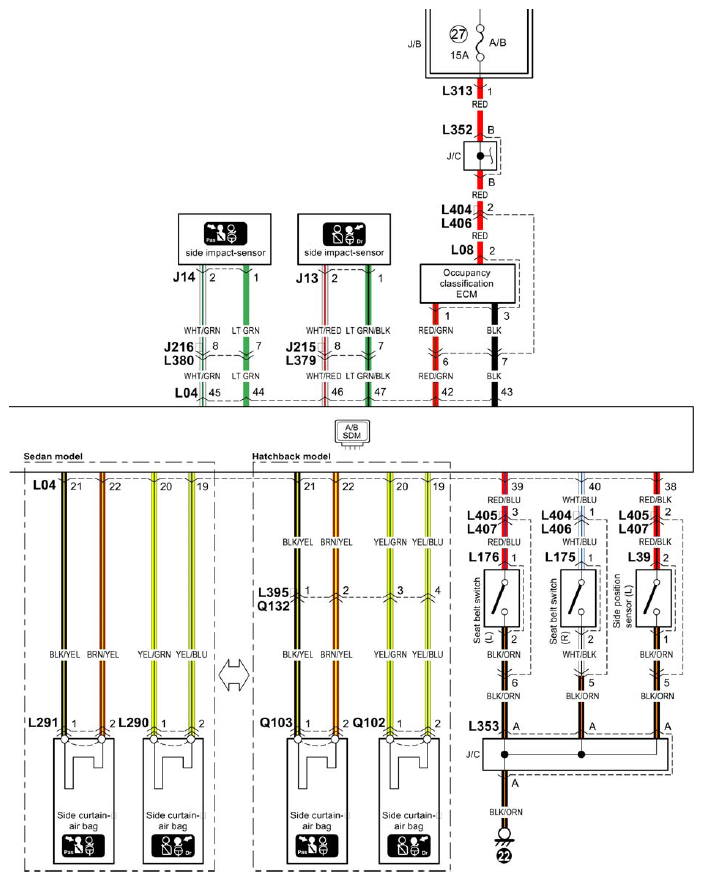

Fig 3: F-1 Air Bag System Circuit Diagram (10CH) (3 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.
