D-6 Turn Signal and Hazard Warning Light System Circuit Diagram (Hatchback)

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

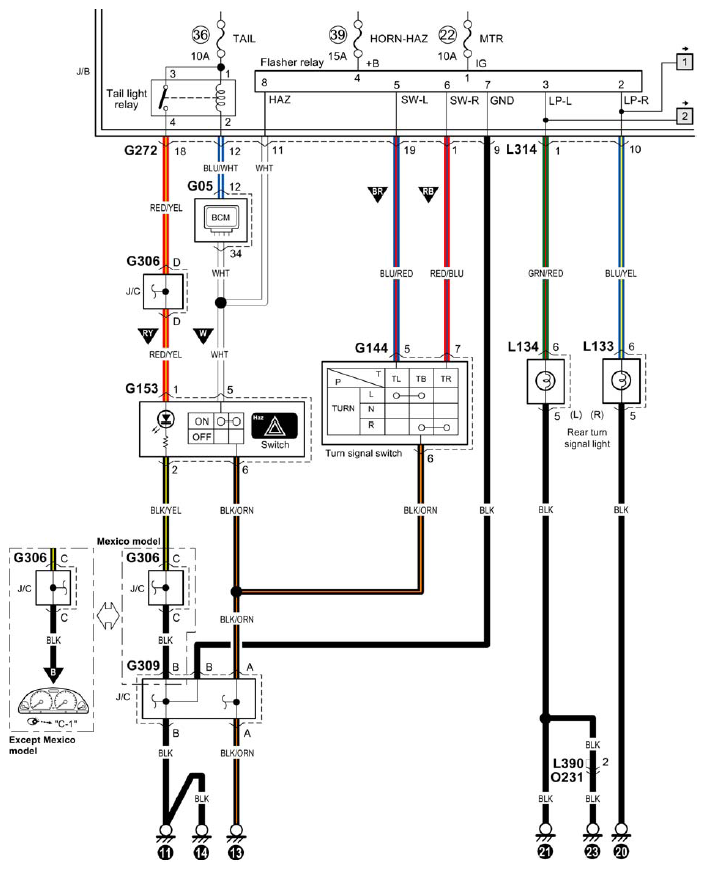

Fig 1: D-6 Turn Signal And Hazard Warning Light System Circuit Diagram (Hatchback) (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

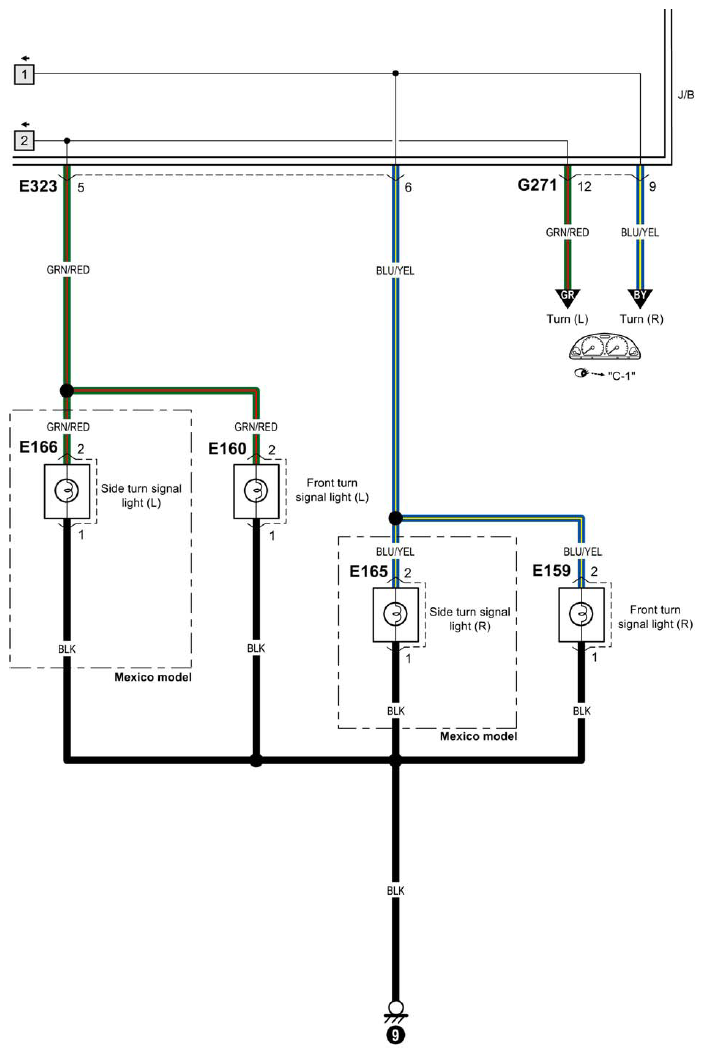

Fig 2: D-6 Turn Signal And Hazard Warning Light System Circuit Diagram (Hatchback) (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
