Combination Meter Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable at battery.
Remove dash side trim (1) and steering column hole cover (2).

Fig 1: Removing Dash Side Trim And Steering Column Hole Cover
Courtesy of SUZUKI OF AMERICA CORP.
Remove center ventilation louver with garnish referring to CENTER VENTILATION LOUVER REMOVAL AND INSTALLATION .

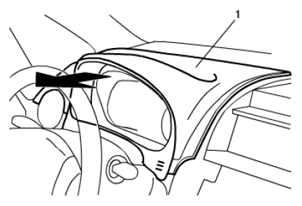

Remove combination meter cluster panel (1) pulling it in arrow direction shown in figure.

Fig 2: Removing Combination Meter Cluster Panel
Courtesy of SUZUKI OF AMERICA CORP.
Remove screws (1) fastening combination meter.
Remove combination meter (2) pulling it arrow direction as shown.

Fig 3: Removing Combination Meter
Courtesy of SUZUKI OF AMERICA CORP.
