Windshield Wiper and Washer Switch Removal and Installation: Removal

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable at battery.
Remove steering column hole cover (1).
Remove steering column covers (2).
Turn steering wheel to access steering column cover rear end screws (3).

Fig 1: Identifying Steering Column Cover Rear End Screws
Courtesy of SUZUKI OF AMERICA CORP.
(Immobilizer model)
Remove immobilizer control module referring to ICM REMOVAL AND INSTALLATION .

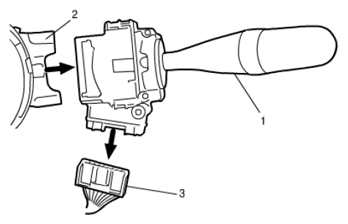

Remove windshield wiper and washer switch (if equipped) (1) from combination switch assembly (2) and disconnect its coupler (3).

Fig 2: Removing Windshield Wiper And Washer Switch From Combination Switch Assembly
Courtesy of SUZUKI OF AMERICA CORP.
