Intermittent Wiper Relay Circuit

WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the windshield wiper switch to "INT" position.
  2. Connect battery positive (+) terminal to terminal "5" and its negative (-) terminal to terminal "2".
  3. Connect voltmeter positive lead to terminal "4" and its negative lead to terminal "2".
  4. Check that the voltmeter indicates the battery voltage (10 - 14 V).
  5. Connect terminal "3" and terminal "5" by a jumper wire.
    Fig 1: Checking Intermittent Wiper Relay Voltage
    G06868821Courtesy of SUZUKI OF AMERICA CORP.
  6. Disconnect end of the jumper wire from terminal "5".
  7. Connect disconnected jumper wire end to terminal "2", then check that voltage between terminal "4" and terminal "2" changes as shown.

    If check result is not satisfied, replace switch.

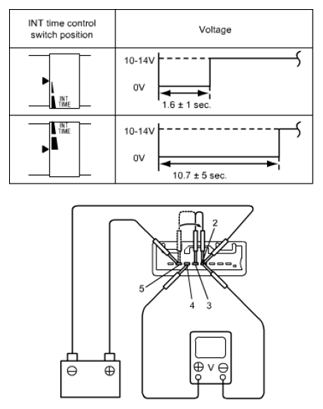

    Fig 2: Checking Voltage Between Terminal "4" And Terminal "2"
    G06868822Courtesy of SUZUKI OF AMERICA CORP.
